Vigor2862n VDSL2/ADSL2+ AnnexB Router-TO2
VDSL2/ADSL + GbE Dual-WAN VPN Router
- Výrobce
- Dray Tek
- Záruka
- 24 měsíců
- Kód
- 981-2862007-Z0G
- Dostupnost
- SKLADEM doručení do 2 dnůK dodání v pondělí 25.11.2024
Kdy zboží dostanete?
Výhodné doručení k Vám v pondělí 25.11.2024
Doprava do zemí EU v pátek 29.11.2024
Termíny dodání jsou platné, pokud objednáte nyní, 23.11.2024 4:44 a pro 1 ks.
- Naše cena s DPH
- 7 449 Kč/ks
- Naše cena bez DPH
- 6 156 Kč/ks
Produkt patří do kategorie:
Popis
Robustní řešení pro malé a střední firmy
Řada Vigor2862 je modemový směrovač VDSL vybavený portem RJ-11 WAN, vestavěným modemem VDSL/ADSL, portem GbE WAN a mnoha funkcemi podnikové třídy.
Je určen pro malé a střední firmy s připojením DSL, potřebuje redundanci internetu a pokročilou správu sítě. Řada 2862 obsahuje modely s vestavěnou Wi-Fi 2 Wave 2 802.11ac, lepením VDSL a bránou VoIP.
Až 4 WAN Vyrovnávání zatížení, propustnost NAT až 500 Mb/s
32 VPN Propustnost VPN IPsec až 85 Mb/s
16 SSL VPN Propustnost až 45 Mb/s
Relace 50k Doporučeno pro 30 klientů

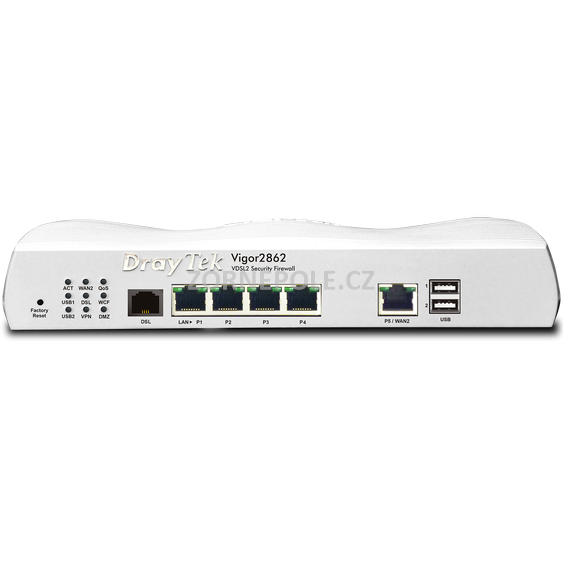

1. Tlačítko Obnovení továrního nastavení
2. WAN 1: RJ-11 pro VDSL2/ADSL2+
3. Lan port 1 až 4: Gigabitový Ethernet, RJ-45
4. Port WAN2 nebo LAN 5: Gigabitový Ethernet, RJ-45
5. 2x USB WAN (WAN3 a WAN4) nebo multifunkční USB port pro síťové úložiště, tiskárnu nebo teploměr
Parametry
Parametry produktu Vigor2862n VDSL2/ADSL2+ AnnexB Router-TO2
Interface
*
Fixed WAN Port
1x RJ-11 for VDSL2 or ADSL2/2+
LAN/WAN Switchable Port
1x Gigabit Ethernet
Fixed LAN Port
4x Gigabit Ethernet
USB Port
2x USB 2.0 for 3G/4G/LTE USB modem, storage, printer or thermometer
RJ-11 Port for Voice
2x FXS + 1x Life Line (V model)
Wi-Fi Antenna
Type: External Dipole, Gain: 4 dBi for 5GHz, 2 dBi for 2.4GHz (wireless model)
2.4G WLAN
802.11n 2x2 MIMO 300Mbps (wireless model)
5G WLAN
802.11ac Wave 2 4x4 MU-MIMO 1.7Gbps (dual-band wireless model)
Performance
*
NAT Throughput
500 Mbps
NAT Throughput w/ Hardware Acceleration
900 Mbps
IPsec VPN Performance
85 Mbps (AES 256 bits)
SSL VPN Performance
45 Mbps
Max. Number of NAT Sessions
50,000
Max. Concurrent VPN Tunnels
32
Max. Concurrent OpenVPN + SSL VPN
16
VDSL/ADSL
*
VDSL Standards
ITU-T G.993.1 (VDSL), G.997.1, G.993.2 (VDSL2)
VDSL2 Profile
8a, 8b, 8c, 8d, 12a, 12b, 17a, 30a
VDSL Band Plan
997
G.INP
Ano
G.Vectoring
Ano
OLR, UPBO, DPBO Support
Ano
US0 Support
Ano
Loop Diagnostic Mode
Ano
ADSL Standards
ANSI T1.413, ITU-T G.992.1(G.dmt), G.992.2 (G.lite)
ADSL2 Standards
ITU-T G.992.3, G.992.3 Annex M/J
ADSL2+ Standards
ITU-T G.992.5, G.992.5 Annex M/J
DSL Forum
WT-114, TR-048/67, TR-100
Internet Connection
*
IPv4
PPPoE, DHCP, Static IP, PPTP/L2TP
IPv6
PPP, DHCPv6, Static IPv6, TSPC, AICCU, 6rd, 6in4 Static Tunnel
802.1p/q Multi-VLAN Tagging
Ano
Multi-VLAN/PVC
Ano
Wireless WAN
Ano (wireless model)
3G/4G/LTE WAN with USB modem
Ano
Load Balancing
IP-based, Session-based
WAN Active on Demand
Link Failure, Traffic Threshold
Connection Detection
ARP, Ping
WAN Data Budget
Ano
Dynamic DNS
Ano
DrayDDNS
Ano
LAN Management
*
Vlan
802.1q Tag-based, Port-based
Max. Number of VLAN
16
Number of LAN Subnet
8
DHCP Server
Multiple IP Subnet, Custom DHCP Options, Bind-IP-to-MAC
LAN IP Alias
Ano
Wired 802.1x Authentication
Ano
Port Mirroring
Ano
Local DNS Server
Ano
Conditional DNS Forwarding
Ano
Hotspot Web Portal
Ano
Hotspot Authentication
Click-Through, Social Login, SMS PIN, Voucher PIN, RADIUS, External Portal Server
Networking
*
Routing
IPv4 Static Routing, IPv6 Static Routing, Inter-VLAN Routing, RIP, BGP
Policy-based Routing
Protocol, IP Address, Port, Domain, Country
High Availability
Ano
DNS Security (DNSSEC)
Ano
Multicast
IGMP Proxy, IGMP Snooping & Fast Leave, Bonjour
Local RADIUS server
Ano
SMB File Sharing
Ano (Requires external storage)
Vpn
*
LAN-to-LAN
Ano
Teleworker-to-LAN
Ano
Protocols
PPTP, L2TP, IPsec, L2TP over IPsec, SSL, GRE, IKEv2, IKEv2-EAP, IPsec-XAuth, OpenVPN(Host to LAN)
SIP, RTP/RTCP, ZRTP
User Authentication
Local, RADIUS, LDAP, TACACS+, mOTP
IKE Authentication
Pre-Shared Key, X.509
IPsec Authentication
SHA-1, SHA-256, MD5
Encryption
MPPE, DES, 3DES, AES
VPN Trunk (Redundancy)
Load Balancing, Failover
Single-Armed VPN
Ano
Nat-Traversal (NAT-T)
Ano
DrayTek VPN Matcher
Ano
Firewall & Content Filtering
*
Nat
Port Redirection, Open Ports, Port Triggering, DMZ Host, UPnP
ALG (Application Layer Gateway)
SIP, RTSP, FTP, H.323
VPN Pass-Through
PPTP, L2TP, IPsec
IP-based Firewall Policy
Ano
Content Filtering
Application, URL, DNS Keyword, Web Features, Web Category* (*: subscription required)
DoS Attack Defense
Ano
Spoofing Defense
Ano
Bandwidth Management
*
IP-based Bandwidth Limit
Ano
IP-based Session Limit
Ano
QoS (Quality of Service)
TOS, DSCP, 802.1p, IP Address, Port, Application
VoIP Prioritization
Ano
Wireless LAN (wireless model)
*
Number of SSID
4 per radio band
Security Mode
WEP, WPA, WPA2, Mixed(WPA+WPA2)
Authentication
Pre-Shared Key, 802.1X
MESH
Root
Wps
PIN, PBC
Wds
Bridge, Repeater
AirTime Fairness
Ano
Band Steering
Ano (dual-band model)
MU-MIMO
Ano (5GHz Only) (dual-band model)
TxBF
Ano (5GHz Only) (dual-band model)
Wmm
Ano
VoIP Gateway (V model)
*
SIP Registrars
12
Dial Plan
Phone Book, Digit Map, Call Barring, Regional
Call Features
Call Waiting, Call Transfer, Scheduled DND, Hotline
Voice Codec
G.711 A/u law, G.723.1, G.726, G.729 A/B
Caller ID
FSK_ETSI, FSK_BELLCORE, DTMF
Management
*
Local Service
HTTP, HTTPS, Telnet, SSH v2, FTP, TR-069
Config File Export & Import
Ano
Config File Compatibility
Vigor2860
Firmware Upgrade
TFTP, HTTP, TR-069
2-Level Administration Privilege
Ano
Access Control
Access List, Brute Force Protection
Access List, Client Isolation, Hide SSID, Wi-Fi Scheduling
Notification Alert
SMS, E-mail
SNMP
v1, v2c, v3
Syslog
Ano
Managed by VigorACS
Ano
Central VPN Management
8 VPN
Central AP Management
20 VigorAP
Mesh Network
7 VigorAP
Central Switch Management
10 VigorSwitch
Physical
*
Power Supply
DC 12V @ 1.5-2A
Max. Power Consumption
31 watts (Vac model)
Dimension
241mm x 166mm x 46mm
Weight
800g (Vac model)
Operating Temperature
0 to 45°C
Storage Temperature
-25 to 70°C
Operating Humidity (non-condensing)
10 to 90%
Certificate
CE FCC
